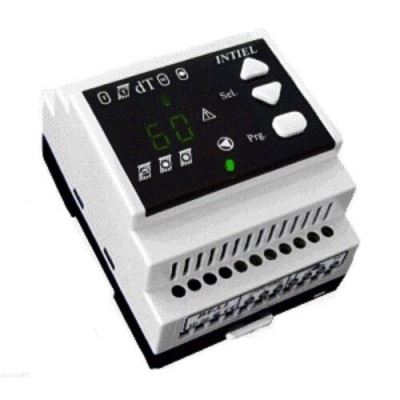

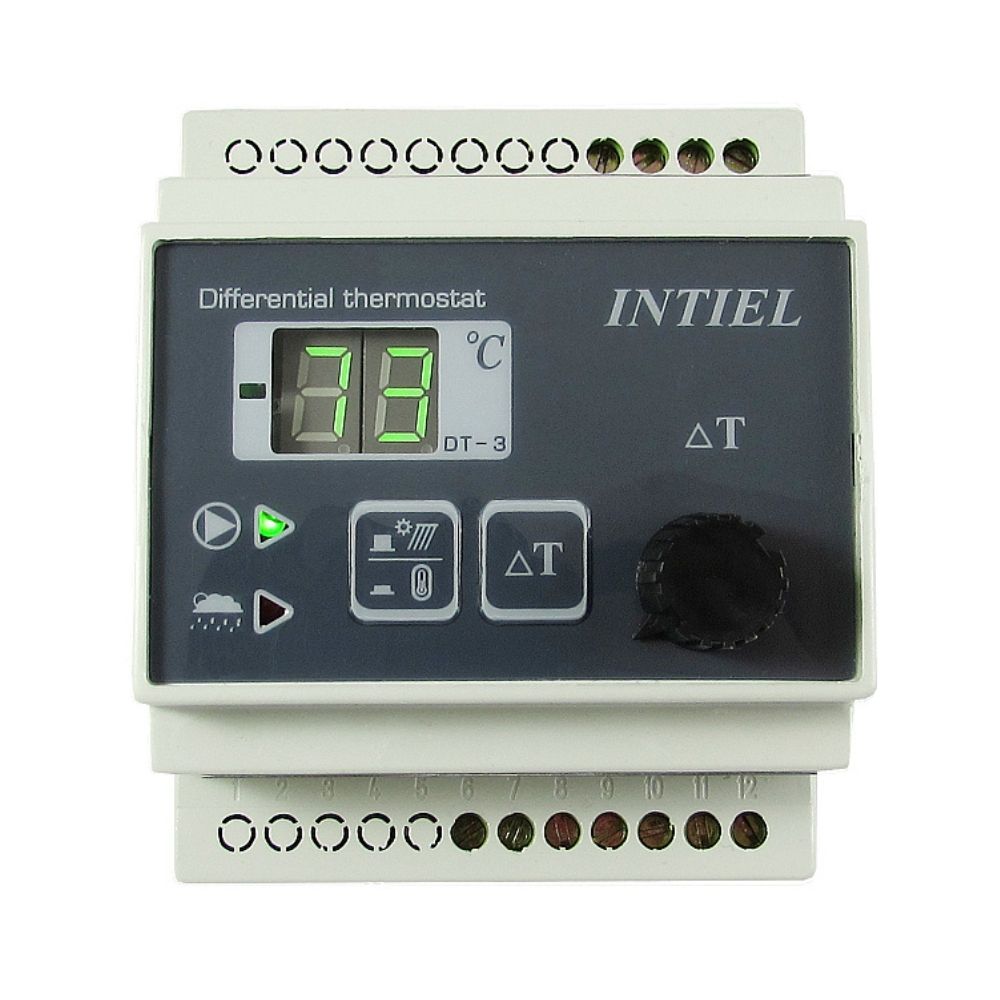

Differential thermostat Thermolux, Model DT-3

Differential thermostat Thermolux, Model DT-3

Device for measuring and temperature control in solar systems.

Stock: Op voorraad
Merk: Thermolux
SKU: 01.301.013

€ 80,20

Incl. BTW

Excl. BTW: € 66,83

Aantal

Bestellen

Navraag

Verlanglijst Product vergelijken

Bespaar 2% met bankoverschrijving.

GESCHATTE LEVERING
25.Dec.2025

Zie Verzendbeleid

365 DAGEN RETOUR
365 dagenZie de details

VEILIGE BETALINGEN
Zie de details

Beschrijving
Verklaringen en instructies

Applications:

The Electronic Differential Thermostat is designed to control the circulation pump and the electrical heating element in relation to the temperature difference between the solar panel and the water heater of the solar panel installation.

Technical data:

Equipped with two temperature sensors LM335, one for the water heater and the other one for the solar panel (fireplace).
There is no limitation concerning the connection cable length of the temperature sensors.
Digital display shows the temperature of the solar panel (boiler) and the water heater.
The Thermostat switches on the circulation pump of the installation if the solar panel (fireplace) temperature is grater than the temperature of the water heater starting from +2° C up to +20°C.
It does not allow the circulation pump to work if the temperature of the solar panel (fireplace) is lower than 40° C.
It controls the operation of electrical heating elements of the water heater (or a mixed valve) by switching them on when the solar panel temperature is lower than 40°С and respectively by switching them off when this temperature is grater than 40°С.
Warranty period of 24 months.
