Smoke extractor fan 160m³/h 50W 300Pa

Fully compatible for EcoSpar pellet stoves up to 25kW

  • Stock: Op voorraad
  • SKU: 16.458.006
€ 143,64
Incl. BTW
Excl. BTW: € 119,70

    Bespaar 5%   met bankoverschrijving.

GESCHATTE LEVERING
03.Jun.2025
DHL Schenker
Zie Verzendbeleid

Gratis retourneren
60 dagenZie de details

Wij accepteren betalingen
    Zie de details

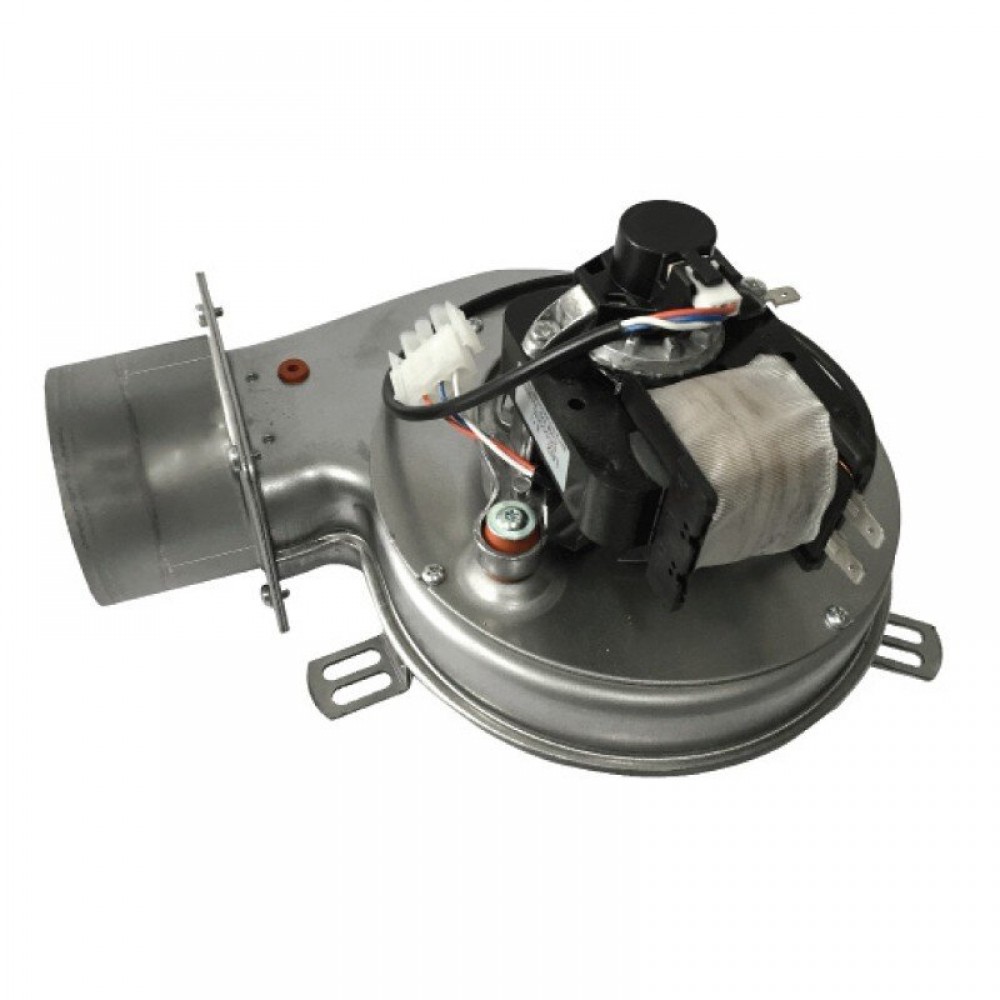

The smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 25 KW.

Can be mounted on:

EcoSpar - Auriga-Alba-Gemini-Karina-Tukana-Solara

NORDICA - MCZ - AMG

PALAZZETTI ref.  895713870 mod. Angelica - Caterina - Giada da rivestire - Isabella - Letizia - Margherita new - Penelope - Silvia - Slimmy - Tracy

PIAZZETTA ref. RF02010660 mod. P158T

SIDEROS mod. Gemini più

PALLADIO mod. Scozia 10 Kw

It can be set up in place of LN2 PL20 model and XIANG RRL152

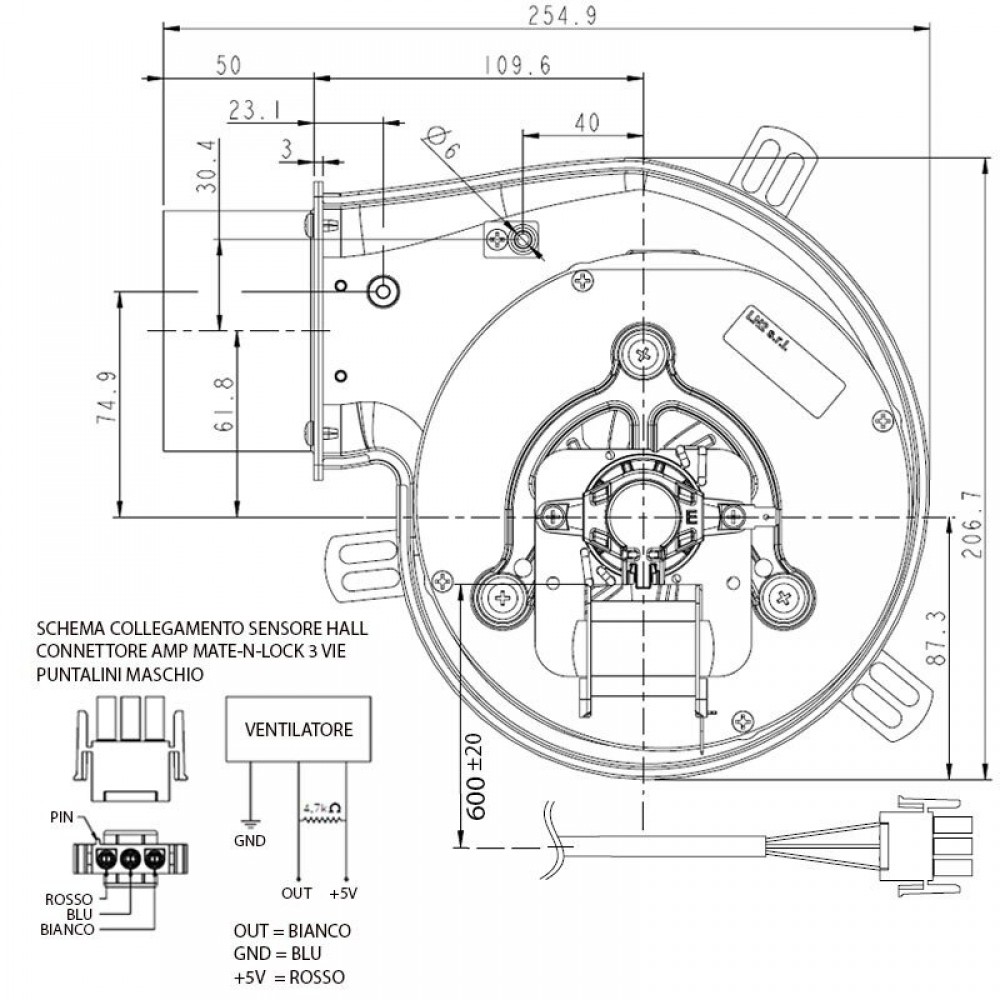

Provided with aluminised steel spiral, which output diameter is of 80 mm, and AISI 430 steel rotor.

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).

In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.

Characteristics
Gewicht (kg) 1.0000
Stroomverbruik (W) 50
Type Smoke extractor fan
Rotatiesnelheid (rpm) 2500
Opgebouwde druk (Pa) up to 300Pa
Flensconnector (mm) 80
Maximale luchtstroomsnelheid (m³/u) 160
